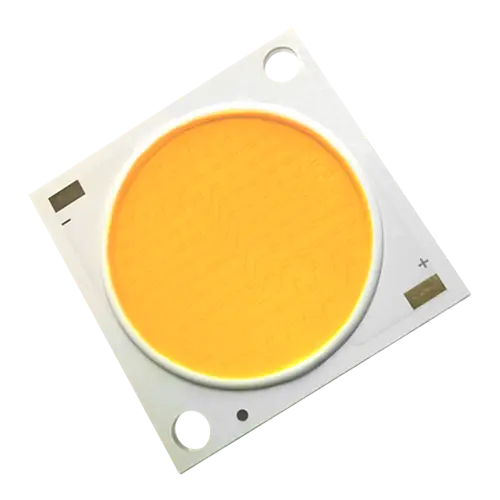

Regular COB

P2181-066

13.35X13.35mm
LES 6.1mm
Power: 6~15W

规格书下载

产品特点

High color quality, high-flux, high-efficacy;
low thermal resistance;
Easy for assemble;
Long lifetime;
Available white chromaticity bins form ANSI options;

P2181-066参数

P2181-066-1211-P2280-X	2200K	80	0	4787	5147	153	34.0
P2181-066-1211-P2580-X	2500K		0	4959	5332	158	34.0
P2181-066-1211-P2780-X	2700K		0	5131	5518	164	34.0
P2181-066-1211-P3080-X	3000K		0	5407	5814	173	34.0
P2181-066-1211-P3580-X	3500K		0	5545	5962	177	34.0
P2181-066-1211-P4080-X	4000K		0	5682	6110	182	34.0
P2181-066-1211-P4580-X	4500K		0	5717	6147	183	34.0
P2181-066-1211-P5080-X	5000K		0	5751	6184	184	34.0
P2181-066-1211-P5780-X	5700K		0	5751	6184	184	34.0
P2181-066-1211-P6580-X	6500K		0	5682	6110	182	34.0
P2181-066-1211-P2290-X	2200K	90	50	4064	4370	130	34.0
P2181-066-1211-P2590-X	2500K		50	4236	4555	135	34.0
P2181-066-1211-P2790-X	2700K		50	4408	4740	141	34.0
P2181-066-1211-P3090-X	3000K		50	4649	4999	149	34.0
P2181-066-1211-P3590-X	3500K		50	4787	5147	153	34.0
P2181-066-1211-P4090-X	4000K		50	4856	5221	155	34.0
P2181-066-1211-P4590-X	4500K		50	4908	5277	157	34.0
P2181-066-1211-P5090-X	5000K		50	4959	5332	158	34.0
P2181-066-1211-P5790-X	5700K		50	4959	5332	158	34.0
P2181-066-1211-P6590-X	6500K		50	4890	5258	156	34.0
P2181-066-1211-P2797-X	2700K	97	90	3454	3714	110	34.0
P2181-066-1211-P3097-X	3000K		90	3729	4010	119	34.0
P2181-066-1211-P3597-X	3500K		85	3867	4158	124	34.0
P2181-066-1211-P4097-X	4000K		85	4005	4306	128	34.0
P2181-066-1211-P4595-X	4500K	95	80	4182	4497	134	34.0
P2181-066-1211-P5095-X	5000K	95	80	4226	4544	135	34.0

*测试仪测量的公差光通量±7%，Ra±2。
*计算出的最小通量仅供参考。
